TGP Futura is a heavy-duty parallel sliding hardware system for aluminium and uPVC doors and windows, supporting sash weights up to 250 kg with four-sided sealing and multipoint locking.

Why TGP Futura Parallel Sliding Door and Window Hardware System?

· Practical for sliding type doors and windows up to 250 kg sash weight.
· Silent locking and unlocking with it’s long-lasting and secure functionality.
· Ergonomic and modern design.
· Excellent harmony between the hardware and sash weight.
· High insulation and sealing pressure with locking elements at every corner.
· Smart design: A carrying capacity up to 150 kg with 2 carts; and from 150 kg to 250 kg with 4 carts.
· High impermeability provided with seal pressure on four sides.
· Full locking and opening made effortless with the highly efficient striker desing.

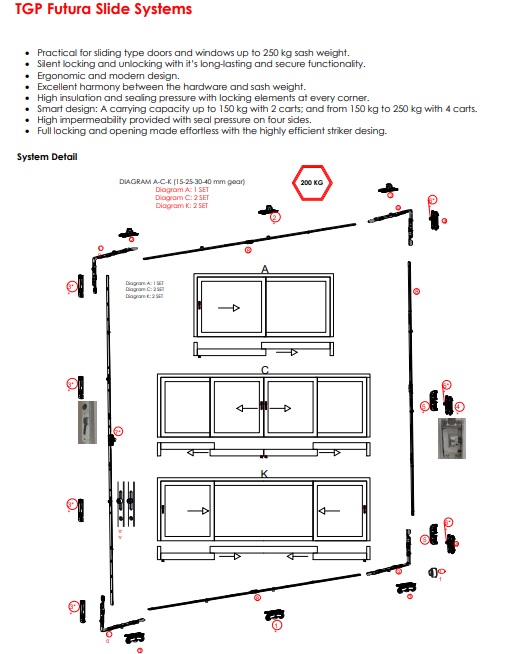

TGP Futura Slide Systems Technical Information

Sliding Systems Quote Form

What Is the TGP Futura Sliding System?

TGP Futura Slide is a high-performance sliding window and sliding door hardware system developed for heavy sashes weighing up to 250 kg, depending on the selected configuration. It combines smooth movement, silent locking, balanced load distribution and four-sided sealing pressure within a coordinated hardware structure.

Rather than being a finished door or window model, the TGP Futura Sliding System provides the carrying, guiding, locking and sealing functions required in demanding sliding applications. It can be evaluated for residential and commercial projects where large glazed openings, heavy profiles and comfortable daily operation are important.

High-Performance Sliding Hardware for Heavy Doors and Windows

Large sliding sashes can create several challenges. As the glazing and profile weight increase, the hardware must carry the load without making the sash difficult to move, noisy to lock or inconsistent when closing against the frame.

TGP Futura Slide addresses these requirements through a configuration-based approach. The carrying components, locking elements and sealing points work together instead of functioning as unrelated individual parts.

Smooth Sliding for Sash Weights of Up to 250 kg

The Futura sliding system supports sash weights of up to 250 kg when the appropriate hardware configuration is selected. This capacity gives manufacturers and project teams greater flexibility when planning heavy-duty sliding doors, large sliding windows and wide glazed openings.

Smooth sliding operation depends on more than roller quality alone. The total sash weight, dimensions, glazing specification, profile structure and number of sliding carriages must be evaluated together. When these factors are correctly matched, the load can be distributed more evenly and the sash can move with less effort.

Silent Locking and Effortless Opening

The silent locking mechanism improves the user experience in homes, hotels, offices, restaurants and other environments where doors and windows may be operated repeatedly throughout the day. A quieter closing action feels more controlled and reduces the harsh mechanical impression sometimes associated with heavy sliding sashes.

The efficient striker design also helps simplify locking and unlocking. In practical terms, users do not need to struggle with a heavy handle movement every time they close the sash. This ergonomic approach supports comfortable operation without separating usability from technical performance.

Four-Sided Sealing for Improved Insulation

TGP Futura Slide applies sealing pressure around all four sides of the sash. Corner locking points and coordinated closing components help create more consistent contact between the sash, the seals and the frame.

This system approach helps improve insulation and resistance to unwanted air or water penetration. Actual performance will still depend on the complete window or door construction, including the profile, glazing, seals, fabrication quality and installation conditions. Even so, balanced sealing pressure is a meaningful advantage in projects where indoor comfort and weather resistance matter.

How Does the Futura Slide Load Capacity Work?

The load-bearing structure is scaled according to the sash weight. This avoids treating a moderately weighted window and an exceptionally heavy glazed door as though they require exactly the same hardware arrangement.

Two-Bogie Configuration for Sashes Up to 150 kg

For sashes weighing up to 150 kg, the Futura Slide can be configured with two bottom bogies. This arrangement provides a practical carrying solution for lower and medium weight ranges while avoiding unnecessary hardware complexity.

The sash must still be calculated accurately. Profile weight, glass thickness, reinforcement and accessories all contribute to the final load, so hardware selection should never be based only on the visible dimensions of the opening.

Four-Bogie Configuration for Sashes Between 150 and 250 kg

For sash weights between 150 and 250 kg, a four-bogie configuration can be used. Additional sliding carriages help distribute the load across the lower section of the system, which is particularly important for large glazed doors and oversized sliding windows.

The final configuration must be determined according to the sash width, height, glazing weight, profile compatibility and project requirements. The maximum capacity should therefore be understood as configuration-dependent rather than an automatic rating for every possible application.

Where Can the TGP Futura Slide System Be Used?

Sliding Windows and Space-Saving Openings

Sliding windows do not require a sash to swing into the room or project outside the façade. This preserves space around furniture, curtains, work surfaces and circulation areas, making sliding openings useful in kitchens, offices, balconies and compact residential layouts.

For wider openings, the Futura sliding window mechanism can combine space-efficient movement with support for heavier glazing. Project teams comparing complete window configurations can also review TGP’s aluminum sliding windows for residential and commercial applications.

Sliding Doors and Large Glazed Areas

The system can be considered for sliding patio doors, terrace connections, balcony exits and other large glazed transitions. These applications often use heavier glass to create broader views and a stronger visual relationship between indoor and outdoor spaces.

In villas, hotels, restaurants and commercial projects, the main challenge is not simply creating a large opening. The sash must remain manageable in everyday use. Balanced carrying, controlled movement and convenient locking therefore become central parts of the design decision.

Winter Gardens and Patio Enclosure Projects

Winter gardens, verandas and patio enclosures frequently combine extensive glazing with limited space for opening sections. A sliding solution allows these areas to be opened without requiring additional swing clearance.

Sealing pressure and operational comfort are especially important in glazed living spaces that are used throughout different seasons. For integrated terrace and enclosure applications, TGP’s winter garden systems provide further options for planning complete projects.

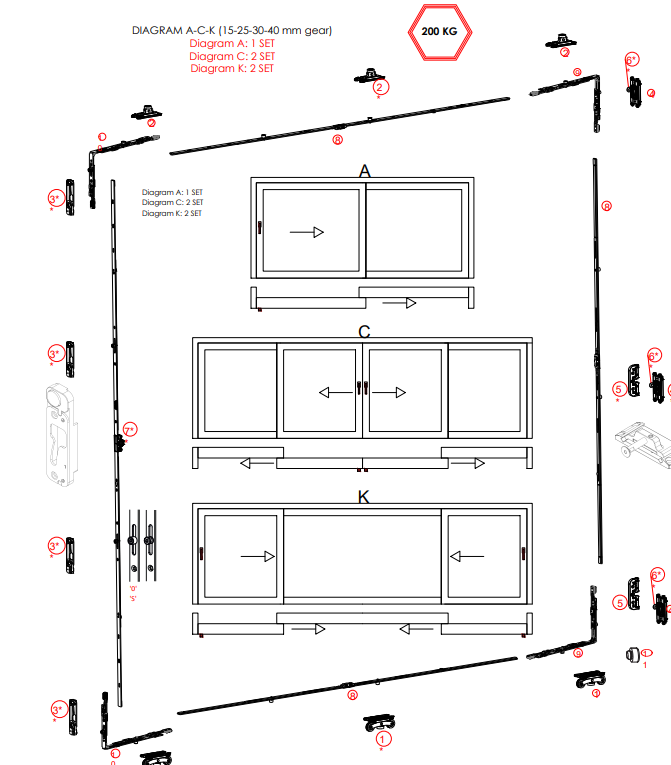

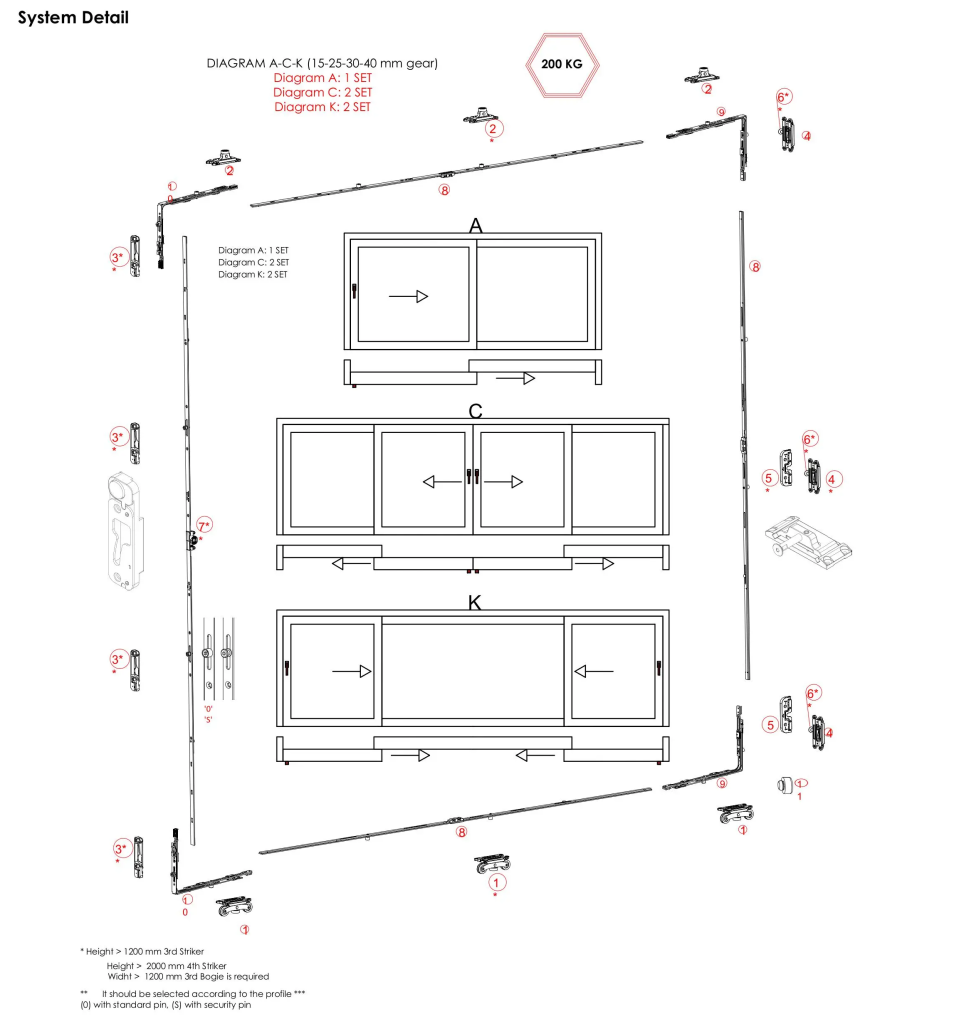

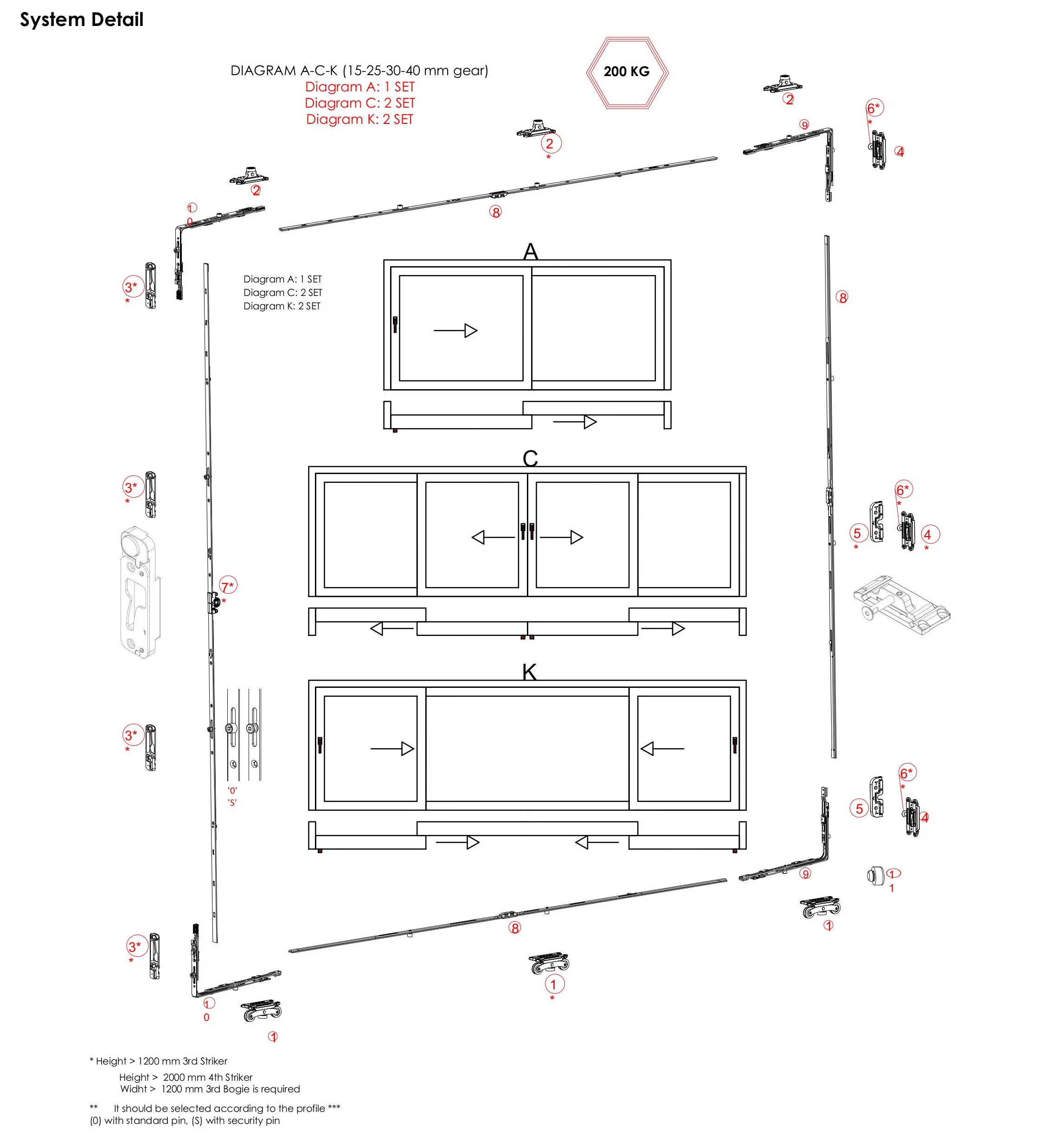

Key Components of the Futura Sliding Hardware System

Bogies, Guides and Sliding Tracks

The lower bogies carry the sash weight and allow it to travel along the bottom rail. Top center guides help control the sash position while the upper and lower rails define the movement path.

These elements must operate as a coordinated assembly. Correct alignment between the sliding carriages, rails, sash and frame connection points helps support stable movement and reduces the risk of uneven operation.

Espagnolette Mechanisms, Strikers and Corner Transmissions

The espagnolette mechanism controls the locking movement, while the espagnolette strikers provide the corresponding closing points on the frame. Long corner transmissions carry this movement around the sash so that several locking and sealing points can engage together.

Locking pins, security pins, rear pulling elements and center closing components contribute to the final closing action. Their combined function is more important than any single component viewed in isolation.

How to Choose the Right Sliding System Configuration

Calculate the Sash Weight and Dimensions

Begin with the sash width and height, but do not stop there. The calculation should include the profile weight, glass type, glass thickness, reinforcement and any additional components fitted to the sash.

Usage frequency and the location of the opening should also be considered. A frequently operated restaurant terrace door may have different practical requirements from a sliding window used occasionally in a private residence.

Check the Profile and Glazing Requirements

The hardware configuration must be compatible with the selected profile system. Insulated aluminium, non-insulated aluminium and uPVC profiles may involve different construction details, dimensions and connection requirements.

Double and triple glazing can significantly affect the total sash weight. For this reason, the correct sliding door mechanism cannot be selected only from the opening size or architectural appearance.

Share Project Drawings for an Accurate Quote

Providing detailed project information allows TGP Systems to evaluate the application more accurately. Useful details include:

• Opening width and height
• Estimated total sash weight
• Profile material and profile type
• Double or triple glazing preference
• Glass thickness and characteristics
• Profile colour
• Project country and city
• Technical drawings, sketches or site photographs
• Required number of units

A complete enquiry reduces uncertainty and helps prevent unsuitable, insufficient or unnecessarily complex hardware selection.

Why Choose TGP Systems for Sliding Window and Door Hardware?

TGP Systems approaches the Futura Slide as an integrated hardware system rather than a collection of separate accessories. Carrying, guiding, locking and sealing components are designed to work together within a project-specific configuration.

The option to use two or four bogies according to the sash weight reflects a scalable engineering approach. Instead of selecting the same arrangement for every opening, professional fabricators can specify the system according to the actual load and construction requirements.

Four-sided sealing pressure, corner locking points, smooth movement and silent locking are combined with technical and assembly documentation. For manufacturers, installers, distributors and technical purchasing teams, this documentation can support planning, fabrication and installation decisions.

Price should not be assessed only through the initial cost of individual components. Compatible hardware, accurate weight-based configuration and clear technical guidance can help reduce selection errors, installation risks and operational problems over the long term.

Request a Quote for the TGP Futura Slide System

Planning a sliding window or door project with large or heavy sashes? Share the opening dimensions, profile type, glazing preference, estimated sash weight, required quantity and available drawings with TGP Systems.

Your project information can be reviewed to identify an appropriate Futura Slide configuration and prepare a tailored quotation. The more accurate the technical details are, the easier it becomes to match the carrying and locking components to the actual application.

Frequently Asked Questions About the Futura Slide

What is the maximum sash weight supported by the Futura Slide?

The TGP Futura Slide can support sash weights of up to 250 kg with the appropriate configuration. The final capacity depends on the sash dimensions, profile structure, glazing weight and selected hardware components. The complete sash weight should be calculated before choosing the bogies and locking arrangement.

How many bogies are required for a Futura Slide sash?

Sashes weighing up to 150 kg can use a two-bogie configuration, while sashes between 150 and 250 kg can use four bogies. Dimensions, profile compatibility and glazing specifications must also be reviewed because sash weight is not the only factor affecting the final hardware selection.

Can the Futura Slide be used for both doors and windows?

Yes, the TGP Futura Slide is developed for sliding doors and sliding windows. It can be evaluated for residential, commercial and architectural applications where heavy sashes, wide glazed openings, smooth operation and coordinated sealing pressure are required.

How does four-sided sealing improve sliding system performance?

Four-sided sealing creates more consistent pressure between the sash seals and the frame. This helps improve insulation and resistance to unwanted air or water penetration. Final performance also depends on the profile, glazing, seals, fabrication quality and installation of the complete opening system.

Is the Futura Slide suitable for large glass openings?

Yes, its configuration-dependent capacity of up to 250 kg makes the Futura Slide suitable for consideration in many large glazed openings. However, suitability must be confirmed by calculating the glass weight, sash dimensions, profile characteristics and required number of carrying components.

What information is needed to request a quotation?

A quotation request should include the opening dimensions, estimated sash weight, profile type, glass specification, profile colour, required quantity and project location. Technical drawings, sketches or site photographs are also valuable because they help clarify the application and support more accurate configuration planning.

Where can the Futura Sliding System be used?

The system can be used in sliding windows, patio doors, balcony exits, terrace doors, villas, hotels, restaurants, offices, winter gardens and commercial projects. Each application should be evaluated according to its sash weight, dimensions, operation frequency and sealing expectations.

Can the Futura Slide be used with double or triple glazing?

The system can be planned for applications using double or triple glazing, provided that the total sash weight and profile requirements are calculated correctly. Triple glazing generally increases the load, so the final bogie arrangement must be selected according to the completed sash rather than the glass alone.

Does the Futura Slide make heavy sashes easier to operate?

The system is designed to provide smooth sliding operation and more comfortable handling of heavy sashes. Actual ease of movement depends on correct fabrication, rail alignment, bogie selection, sash adjustment and installation. Proper configuration is therefore essential for achieving the intended operational comfort.

Is the Futura Slide a complete door or window?

No, the Futura Slide is a sliding hardware system rather than a finished door or window. It provides the carrying, guiding, locking and sealing mechanisms used within a compatible profile and glazing construction prepared by a manufacturer or project fabricator.

Why is the estimated sash weight important?

The sash weight determines how the load-bearing hardware should be configured. An incorrect estimate may lead to insufficient or unnecessarily complex component selection. Calculating the profile, glass and accessory weight together helps identify the appropriate two-bogie or four-bogie arrangement.

Can TGP Systems help determine the correct configuration?

TGP Systems can review the technical information supplied for the project to help identify an appropriate Futura Slide configuration. Sharing accurate dimensions, glazing details, profile information and drawings supports a more reliable assessment and a quotation based on the actual application.

Send your project details to TGP Systems and request a tailored Futura Slide configuration for your sliding door or window application.
